T SERIES HIGH SPEED MECHANICAL CNC TURRET PUNCH PRESS
Mechanical CNC Turret Punch Press
Features

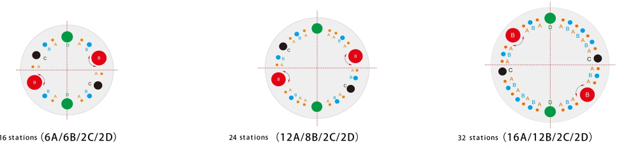

●The T30 Mechanical CNC Punch Press is currently the most cost-effective and practical product on the market. It features 16/24/32 stations and offers optional rotary stations—while meeting more requirements for product functions and efficiency, it also reduces purchase and operational costs.
●Key advantages include: a high stamping frequency of 240 times per minute, patented energy-saving technology, and low power consumption of 2 kWh per hour. Additionally, all its core components are of imported brands.

SPECIFICATION


Model D-T30
Name Specification Unit
Press Capacity 300 KN
Hit Rate 240 hpm
Max. Sheet Size(With-one-reposition) 5000x1250 mm
Max. Diameter Φ88.9 mm
Max. Sheet Thickness 4 mm
Punching Accuracy ± 0.1 mm
Feeding Speed ≤ 80 m/min
Tool Configuration 30 rpm
No. of Controlling Axis 3/4 (X,Y,T,C)
Main Motor Power 5.5 KW
Air Pressure 0.55 mpa
Dimension Length 4800/5200/2300 mm
