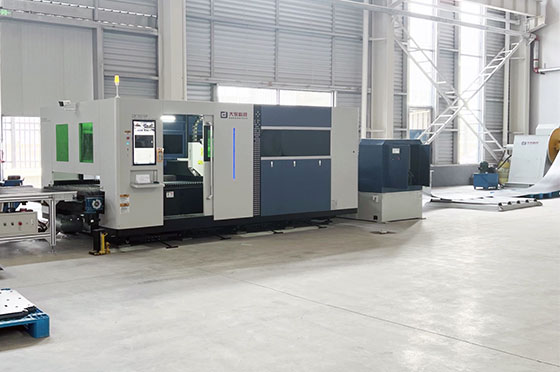

DF COIL LASER CUTTING MACHINE
Features

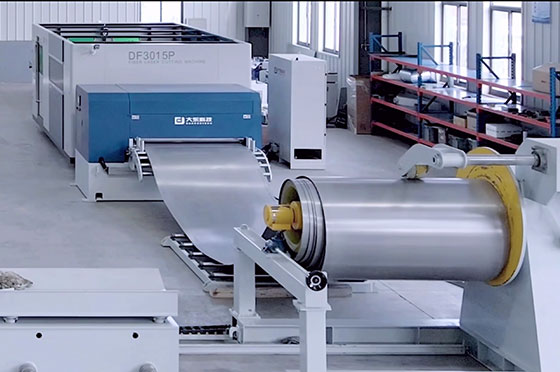

Decoiling-Leveling-Cutting-Unloading,achieving more possibilities of full automation and unlimited cutting.
Decoiling-Leveling-Cutting-Unloading,achieving more possibilities of full automation and unlimited cutting.
| SPECIFICATION | Unit | DF3015 | DF6020 |
| Max. processing sheet | mm | 3000x1500 | 6000x2000 |
| X axis stroke | mm | 1530 | 2030 |
| Y axis stroke | mm | 3030 | 6030 |
| Z axis stroke | mm | 150 | 150 |
| X/Y Max. speed | m/min | 120 | 120 |
| X/Y Max. acceleration | g | 1.2 | 1.2 |
| X/Y positioning accuracy | mm | ± 0.03 | ± 0.05 |
| X/Y re-positioning accuracy | mm | ±0.02 | ±0.02 |
| Coil sheet thickness | mm | 0.8~3.0 | 0.8~3.0 |
| Coil sheet width | mm | ≤1500 | ≤2000 |
| Coil weight | T | ≤10 | ≤12 |
| Coil external diameter | mm | ≤Φ1600 | ≤Φ2000 |
| Drum collapsible range | mm | Φ470~Φ530 | Φ470~Φ530 |
