PDS SERIES SINGLE SERVO

Features

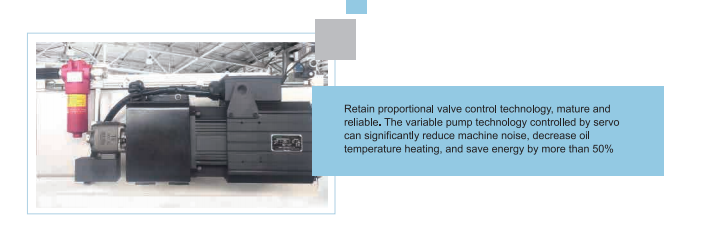

●Pump control technology replaces conventional valve control technology, eliminates overflow losses,and saves 75% energy

●Servo motors can significantly overload in a short period of time, and the rated power of the selected motor is only 50% of the maximum working power

●Reduce the fuel tank capacity by 70%, decrease the usage of hydraulic oil, and prolong the service life of hydraulic oil

●Low thermal equilibrium temperature prolongs the lifespan of hydraulic components

●Lower noise,improve working environment

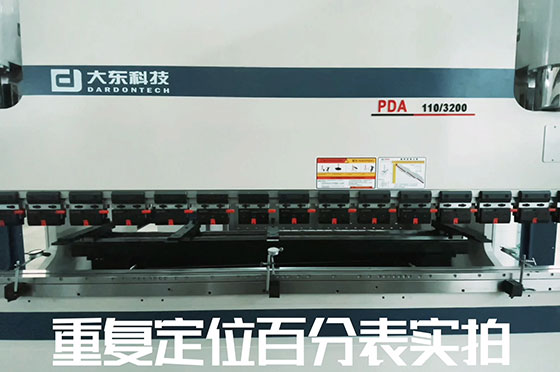

Back Gauge Repositioning Accuracy of Bending Machine

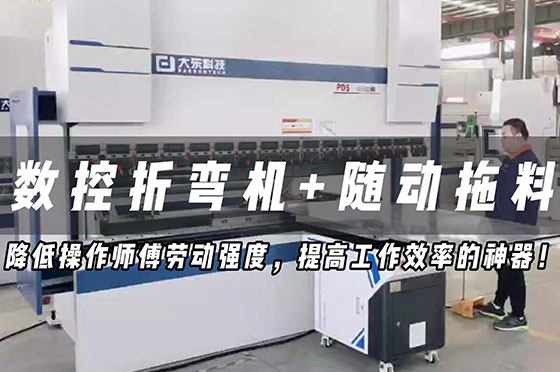

Bending Machine with Follow-up Material Dragging

Product details:

SPECIFICATION

Specification	Model Unit	63/2050	63/2550	110/3100	110/4100	160/3100	160/4100	225/3100	225/4100	250/3100	250/4100
Bending Force	kN	630	630	1100	1100	1600	1600	2250	2250	2500	2500
Bending Length	mm	2050	2550	3100	4100	3100	4100	3100	4100	3100	4100
Column Space	mm	1700	2000	2500	3400	2500	3400	2500	3400	2500	3400
Throat Depth	mm	320	320	400	400	400	400	400	400	400	400
Cylinder Stroke	mm	180	180	215	215	215	215	215	215	215	215
Open Height	mm	480	480	535	535	535	535	535	535	535	535

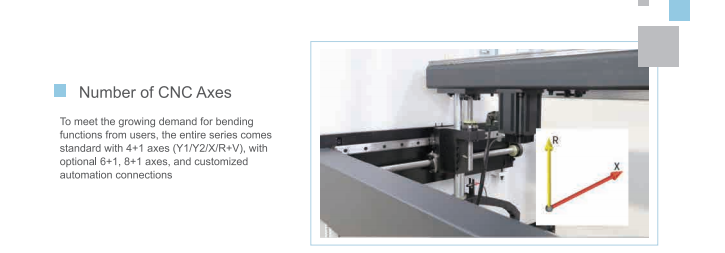

CNC Axes		4		4+1（Y1,Y2,X,R,V）
Main Motor Power	kW	5.5	5.5	8.7	8.7	10.8	10.8	13.2	13.2	13.2	13.2
Oil Tank Capacity	L	150	200	200	300	300	400	300	400	300	400
Approaching Speed	mm/s	200	200	200	200	180	180	120	120	120	120
Speed	Working	18	18	14	14	12.5	12.5	11	11	10	10
Speed	Return	200	200	180	180	160	160	130	130	115	115
Overall Dimensions	Length	2550	3050	3600	4600	3620	4620	3640	4640	3640	4640
	Width	1330	1330	1425	1425	1490	1490	1720	1720	1770	1770
	Height	2380	2380	2535	2635	2585	2685	2685	2785	2735	2835
