PDE SERIES DOUBLE SERVO HYBRID

Features

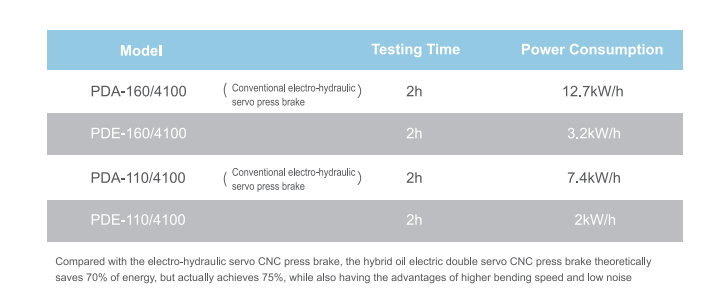

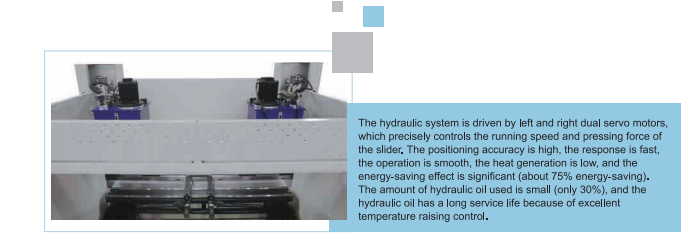

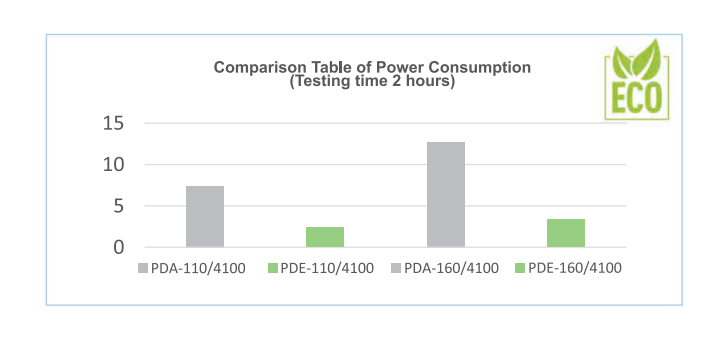

●Pump control technology replaces conventional valve control technology, eliminates overflow losses,and saves 75% energy

●Servo motors can significantly overload in a short period of time,and the rated power of the selected motor is only 50% of the maximum working power

●Reduce the fuel tank capacity by 7o%, decrease the usage of hydraulic oil, and prolong the service life of hydraulic oil

●Lower thermal equilibrium temperature prolongs the lifespan of hydraulic components

●Lower noise,improve working environment

Hydraulic-Electric Hybrid Dual-Servo Press Brake PDE Series

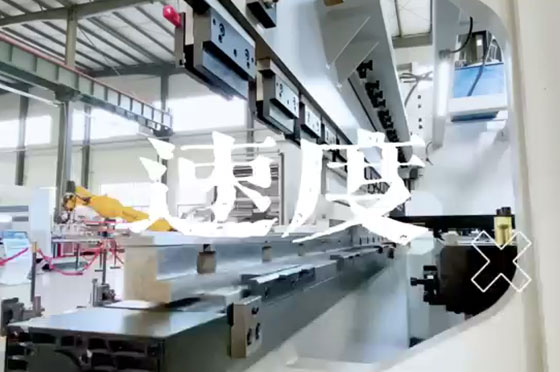

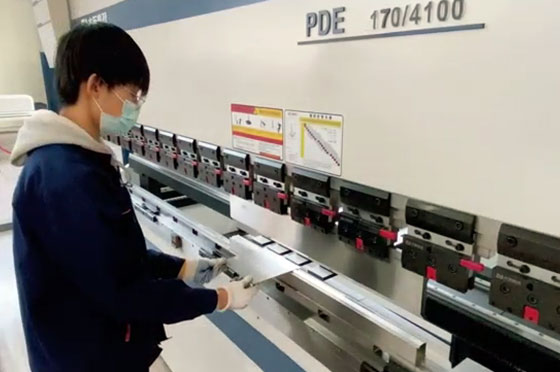

Dual-Servo Press Brake PDE Sample Display

Product details:

SPECIFICATION

SPECIFICATION		UNIT	PDE-60/2000	PDE-80/2500	PDE-110/3200	PDE-110/4100	PDE-170/3200	PDE-170/4100	PDE-200/3200	PDE-200/4100	PDE-250/3200	PDE-250/4100	PDE-320/3200	PDE-320/4100
Bending Force		KN	600	800	1100	1100	1700	1700	2000	2000	2500	2500	3200	3200
Bending Length		mm	2000	2500	3200	4100	3200	4100	3200	4100	3200	4100	3200	4100
Column Space		mm	1700	2000	2700	3600	2700	3600	2700	3600	2700	3600	2700	3600
Open Height		mm	425	425	525	525	525	525	560	560	560	560	560	560
Throat Depth		mm	300	320	400	400	400	400	400	400	400	400	400	400
Cylinder Stroke		mm	160	160	250	250	250	250	300	300	300	300	300	300
Main Motor Power		KW	5*2	5*2	5*2	5*2	6*2	6*2	8*2	8*2	11.5*2	11.5*2	11*2	11*2
Oil Tank Capacity		L	50*2	50*2	50*2	50*2	50*2	50*2	50*2	50*2	120*2	120*2	120*2	120*2
Speed	Approaching	mm/s	220	200	180	180	170	170	180	180	165	165	145	145
	Working	mm/s	25	20	16	16	16	16	18	18	18	18	14	14
	Return	mm/s	220	200	180	180	170	170	190	190	165	165	130	130
Overall Dimensions	Length	mm	2670	2980	3700	4600	3720	4620	3740	4640	3740	4640	3760	4660
	Width	mm	1360	1460	1665	1665	1740	1740	1840	1940	1940	1940	2100	2100
	Height	mm	2410	2435	2625	2675	2675	2725	2982	2982	3060	3060	3240	3240
