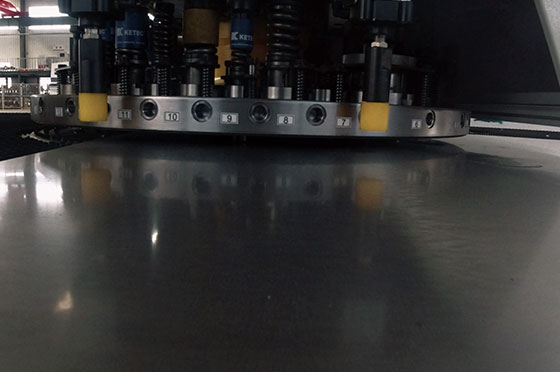

●The punch is controlled by servo, with a marking frequency of 2ooohpm
●Independently developed servo control system with strong compatibility and real-time update
●Can realize high-end processes such as efficient and precise rolling,roll cutting and lettering
●Energy-saving and environ mental protection,low energy consumption and low noise

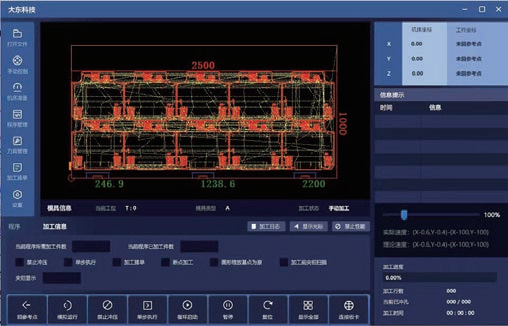

CNC SystemIt has a special CNC turret punch presscontrol system with independent intellectual property rights,breaking the market monop-oly of foreign systems.It can realize graphic programming,is easy to operate and learn, reduces the technical requirements foroperators, and has strong scalability |

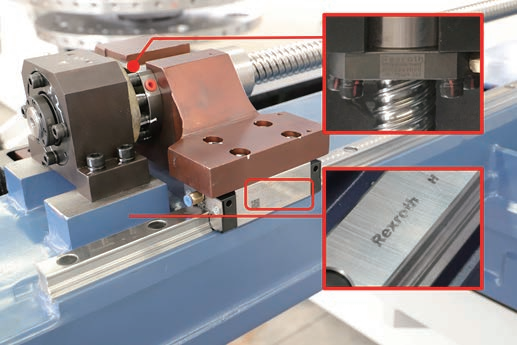

Guide Rail and Lead ScrewFully imported guide rail and lead screwwith large lead and high precisionThe first domestic gantry verticaldouble-guide rail beam design |

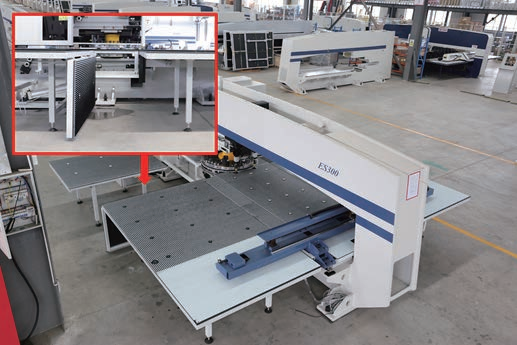

Seamless TabletopEffectively avoid the possibility of collisionduringhigh-speedoperation of thin plates |

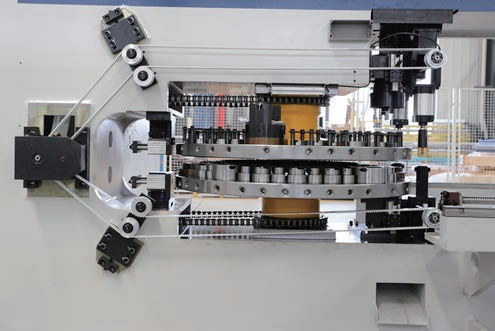

C-Axis TransmissionRotary station drive structure - the entire imported Continental synchronous belt from Germany |
TurretPrecision machining by Japanese Mazak5-axis,ensuring the coaxiality of upper and lower molds and prolonging the service lifeof molds |

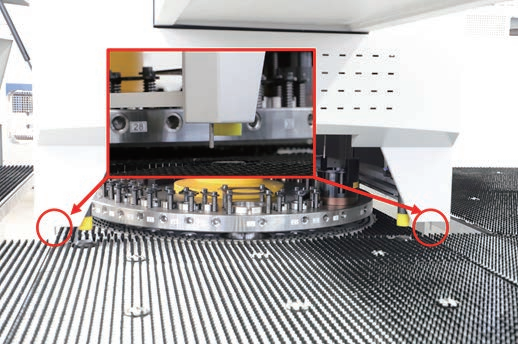

Protection DeviceSheet warping protection, mold jumping protection, stroke detection protection,motor overload protection, etc. |

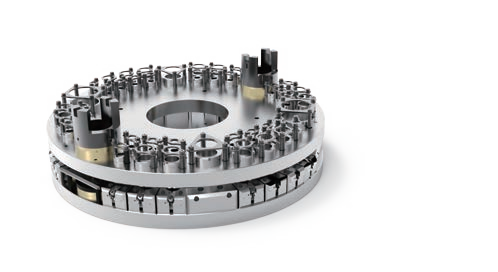

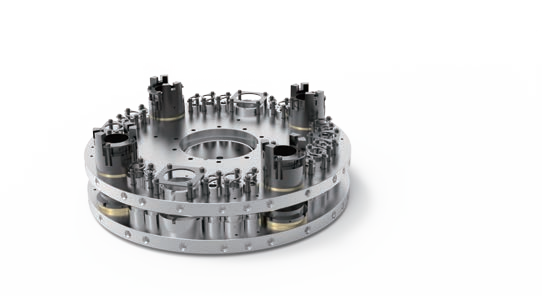

Options Customized turret (4 rotations) |
Options 46 stations (die quick change device) |

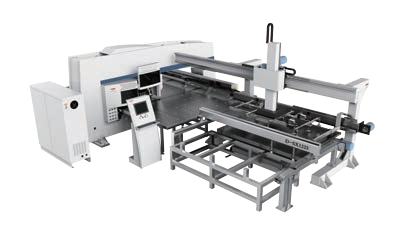

Options Automatic loading and unloading device |
|

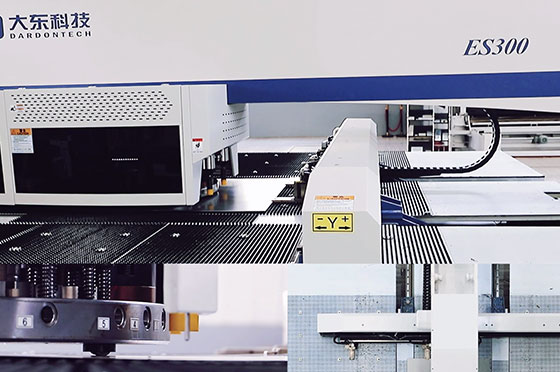

| D-ES300 | ||
| Name | Specifications | Unit |
| Capacity | 300 | kN |
| Hit Rate | 2000max/8501mm/40025.4mm | hpm |
| Max. Sheet Size (One Re-pos) | 5000x1250/5000x1500 | mm |
| Max. Hole Diameter | Φ88.9 | mm |
| Max. Sheet Thickness | ≤6.35 | mm |
| Accuracy | ±0.1 | mm |
| Feeding Speed | ≤110 | m/min |
| Turret Layout | 32(16A 10B 2B#2C 2D) | |
| Turret Rotating Speed | 30 | rpm |
| CNC Axes | 5(X Y T C A) | |
| Main Motor Power | 63 | KW |
| Air Pressure | 0.6 | mpa |
| Machine Dimension | 4800/5200x5200x2250 | mm |
Options Waste collection device
