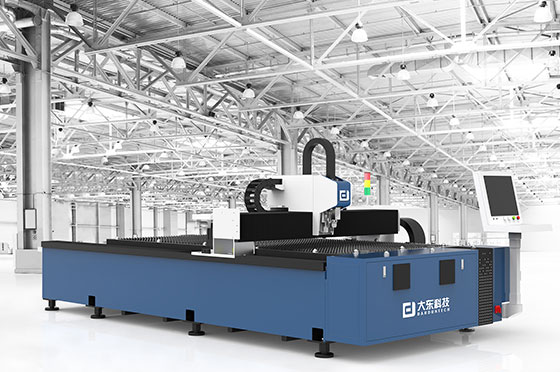

●Welded frame,overall high temperature aging treatment and high precision machining

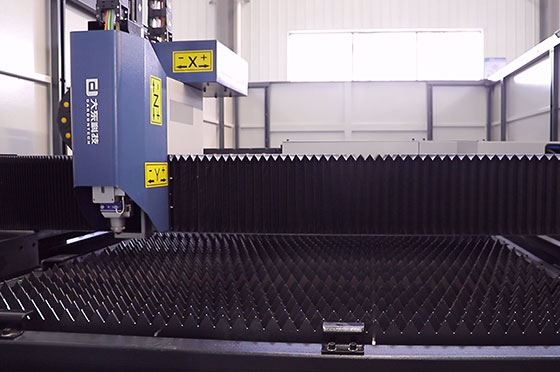

●Adopt gantry dual-drive structure
●Adopt aviation aluminum for beam and Z axis.
●High-precision rack,bilateral gear

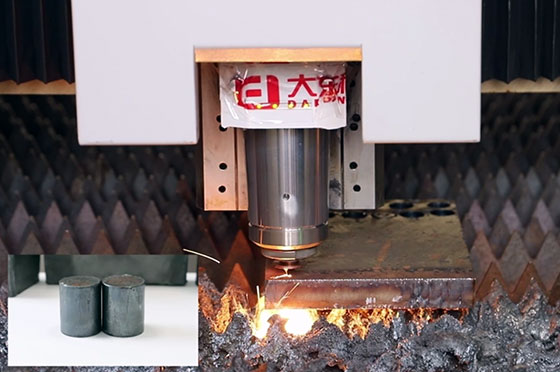

●Design of plate concave-convex surface follow-up cutting head
●Universal supporting steel ball
●Multiple limit protection(induction limit, hard limit, origin limit)
| SPECIFICATION | Unit | DS3015 | DS4020 | DS6020 | DS6025 | DS8025 | DS12025 |
| Max. processing sheet | mm | 3000x1500 | 4000x2000 | 6000x2000 | 6000x2500 | 8000x2500 | 12000 2500 |
| X axis stroke | mm | 1530 | 2030 | 2030 | 2530 | 2530 | 2530 |
| Y axis stroke | mm | 3030 | 4030 | 6030 | 6030 | 8030 | 12030 |
| Z axis stroke | mm | ≤150 | ≤150 | ≤150 | ≤150 | ≤200 | ≤ 200 |
| X/Y Max. speed | m/min | 120 | 120 | 120 | 120 | 120 | 120 |
| XY Max. acceleration | g | 1.2 | 1.2 | 1.5 | 1.5 | 2.0 | 2.5 |
| X/Y positioning accuracy | mm | +0.03 | ± 0.03 | ± 0.05 | ± 0.05 | ±0.05 | ±0.05 |
| X/Y re-positioning accuracy | mm | ±0.02 | ± 0.02 | ± 0.02 | ±0.02 | ±0.02 | ±0.02 |
| Dimension(LxWxH) | m | 5X2.3X2 | 6.2x3x2 | 8.5x3.0x2.1 | 8.5X3.7X2.1 | 10.5X3.6X2.1 | 14.9X3.8X2.2 |
Options
| Laser power | 1kW | 1.5kW | 2kW | 3kW | 4kW | 6kW | 8kW | 12kW | 15kW | 20kW |
| Dust collector | 4 filters(5.5kW) | 6 filters(7.5kw) | 8 filters(11kW) | |||||||
| Stabilizer | SWF- 30KVA | SWF-50KVA | SWF-80KVA | SBW-100KVA | SBW- 120KVA | SBW- 150KVA | ||||
