DC SERIES FIBER LASER CUTTING MACHINE-DARDONTECH

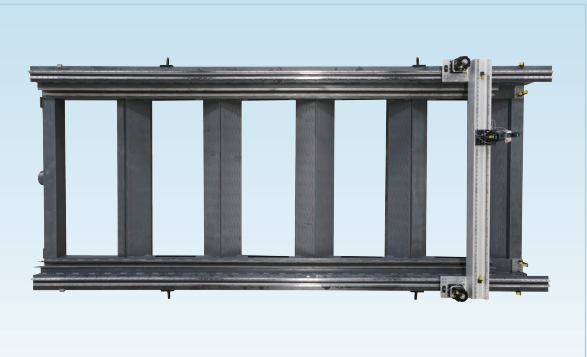

Frame Structure

The entire series of frames from DARDONTECH adopt an integralsteel plate welded structure, with overall heat treatment,large-scaleimported CNC boring and milling machines for rough machining, secondary vibration aging treatment, and precision machining processesensuring the overall mechanical performance and long-term workirg stability

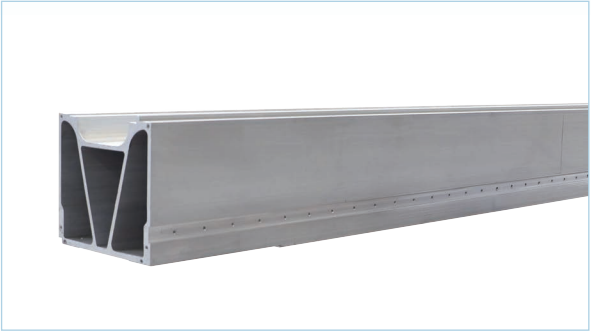

Beam Design

Extruded aviation aluminum profiles, light weight, high density, higgh equipment acceleration: T6 heat treatment process, stress relief,ensuring uniform hardness; triangular structure, ensuring rigidity aand better stability,

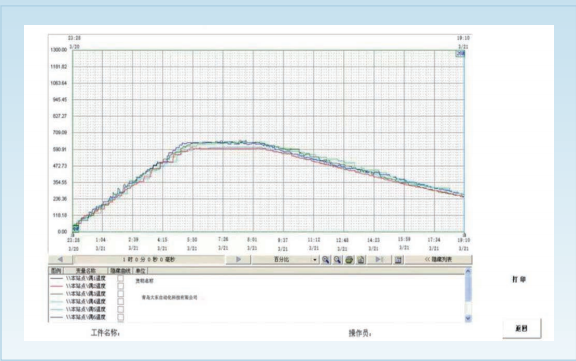

Frame Heat Treatment Process

DARDONTECH solemnly promises that each machine is made in accordance with the machine tool standards, strictly following the heattreatment process and naturally cooled.

Frame Installation Process

The imported Leica laser alignment instrument is used to inspect the paralm and perpendicularity of the frame to ensure theinstallation accuracy, thereby ensuring the high-speed and high-precision cutting of the machine.

SPECIFICATION	Max. processing sheet	X axis stroke	Y axis stroke	Z axis stroke	X/Y Max. speed	X/Y Max. acceleration	X/Y positioning accuracy	X/Y re-positioning accuracy	Dimension [ LxWxH]
DC3015	3000×1500	1510	3010	150	120	1,5	±0.05	±0.03	4,8×4,5×2,4
